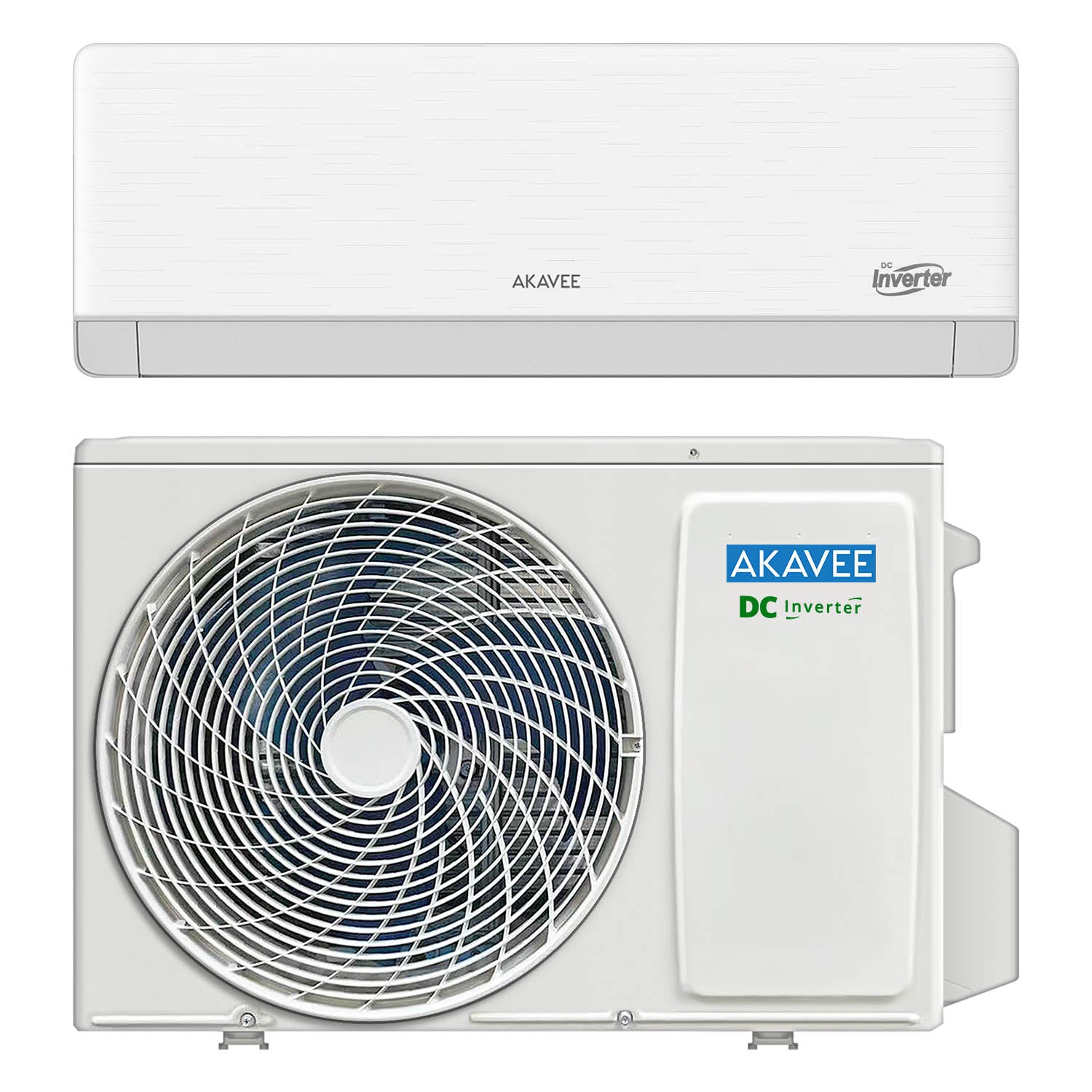

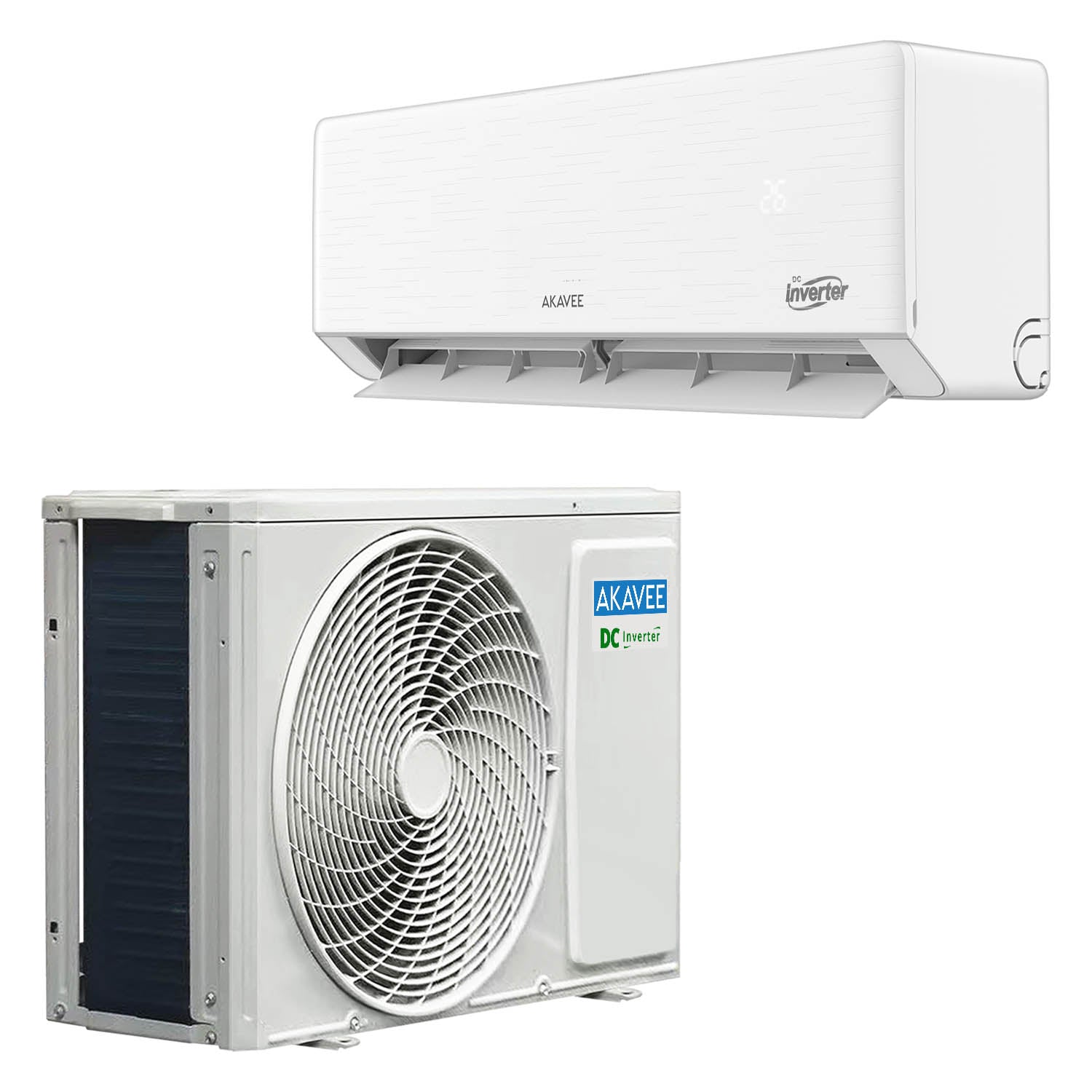

| Akavee Air Conditioner (24000BTU) | |
|---|---|
| Brand: | Akavee |
| Model: | AS-24MER3DI |
| Type: | DC Inverter Split Type |
| Technical Specs: | |
| Rated Capacity (Cooling): | 7100 W |
| Dehumidifying: | 2.2 Kg/h |
| Rated Power Consumption (Cooling): | 2200 W |
| Rated Running Current: | 11 A |
| Max. Input Power: | 2800W |
| Max. Input Current: | 15A |
| CSPF (Cooling Seasonal Performance Factor): | 4.56 W/W |
| Air Flow Volume: | 1300m³/h |
| Power Supply Source: | 220-240V / 1Ph / 50Hz |
| Refrigerant & Pressure: | |
| Refrigerant: | R32 |
| Refrigerant Charged: | 850g |
| Max. Discharge Pressure: | 4.3Mpa |
| Max. Suction Pressure: | 2.5Mpa |
| Connection: | |
| Connect Pipe (Length): | 3m |
| Liquid Valve: | DG4 |
| Gas Valve: | DG10 |

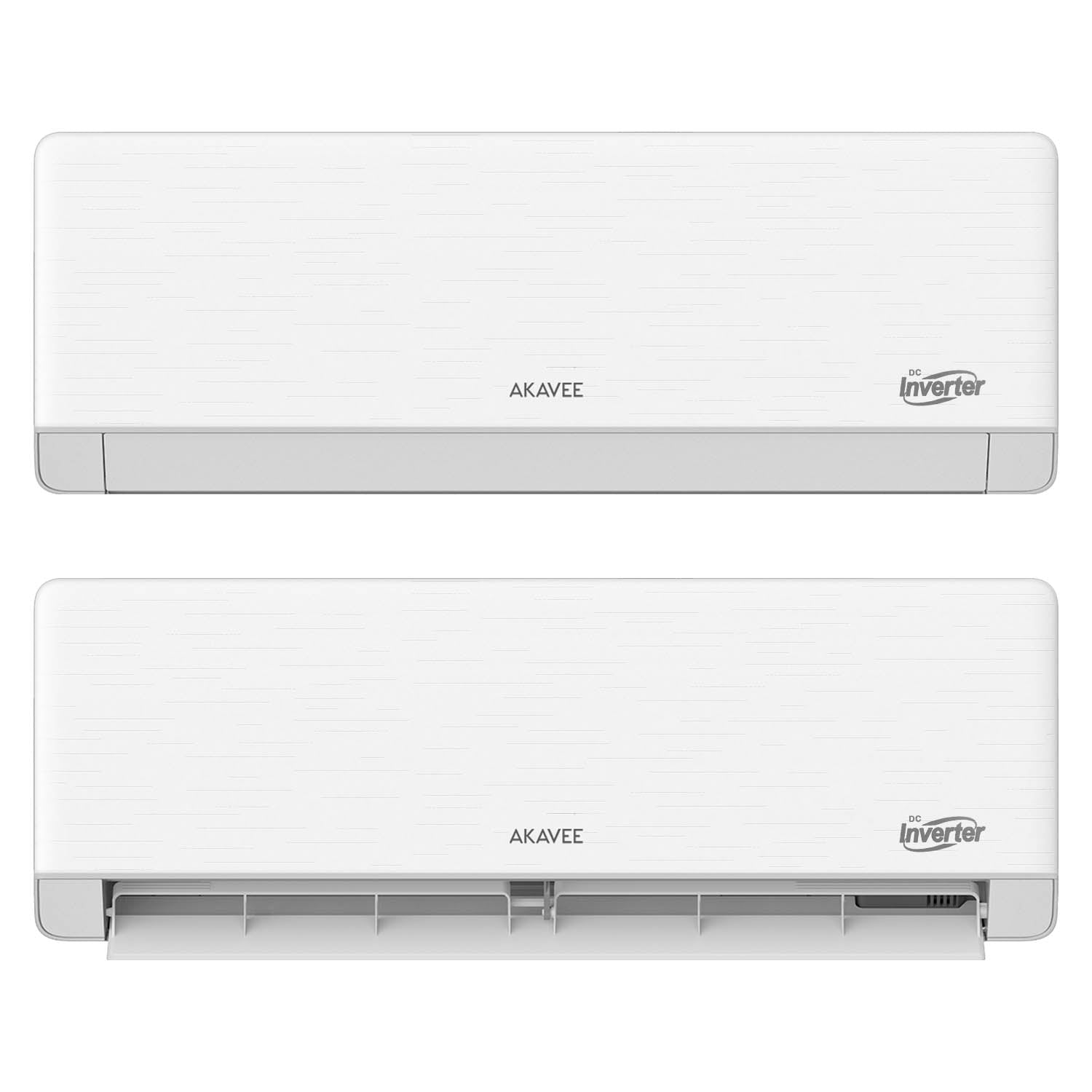

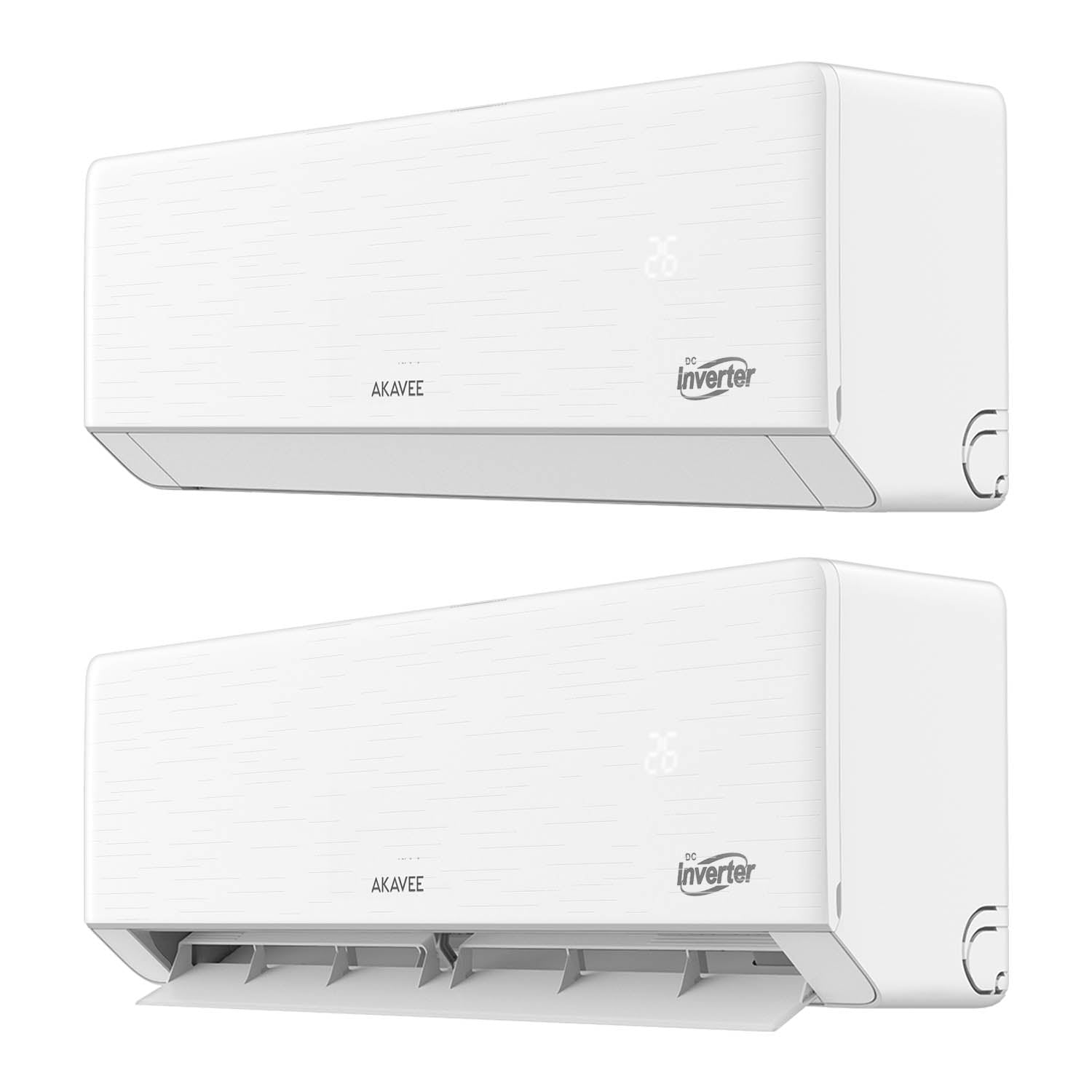

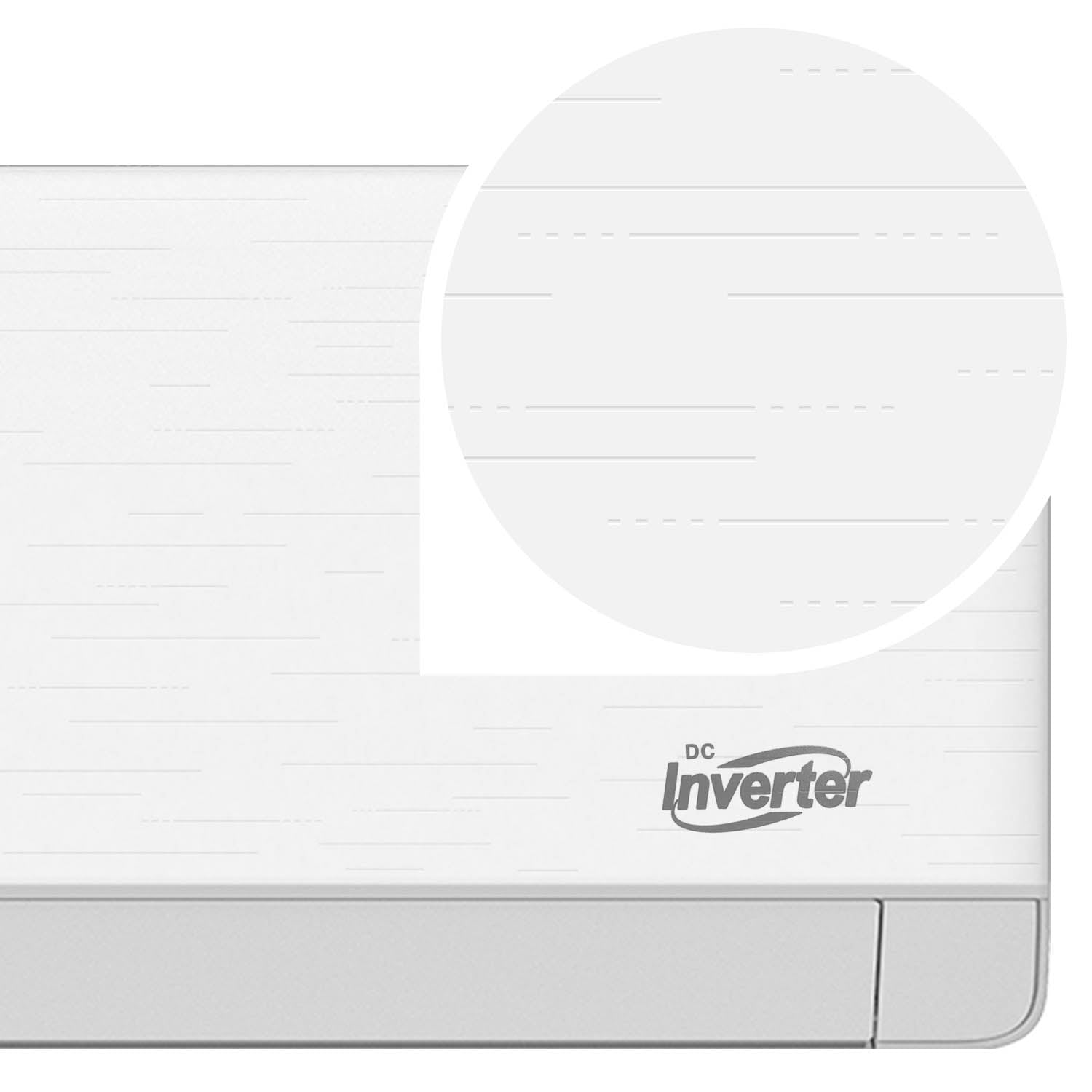

| Indoor Unit: | |
| Noise Level: | 47db |
| Evaporator (tube) Length: | 850mm |
| Evaporator (tube) Diameter: | 5mm |
| Fan system (fan motor): | Model D-310-50-10A |

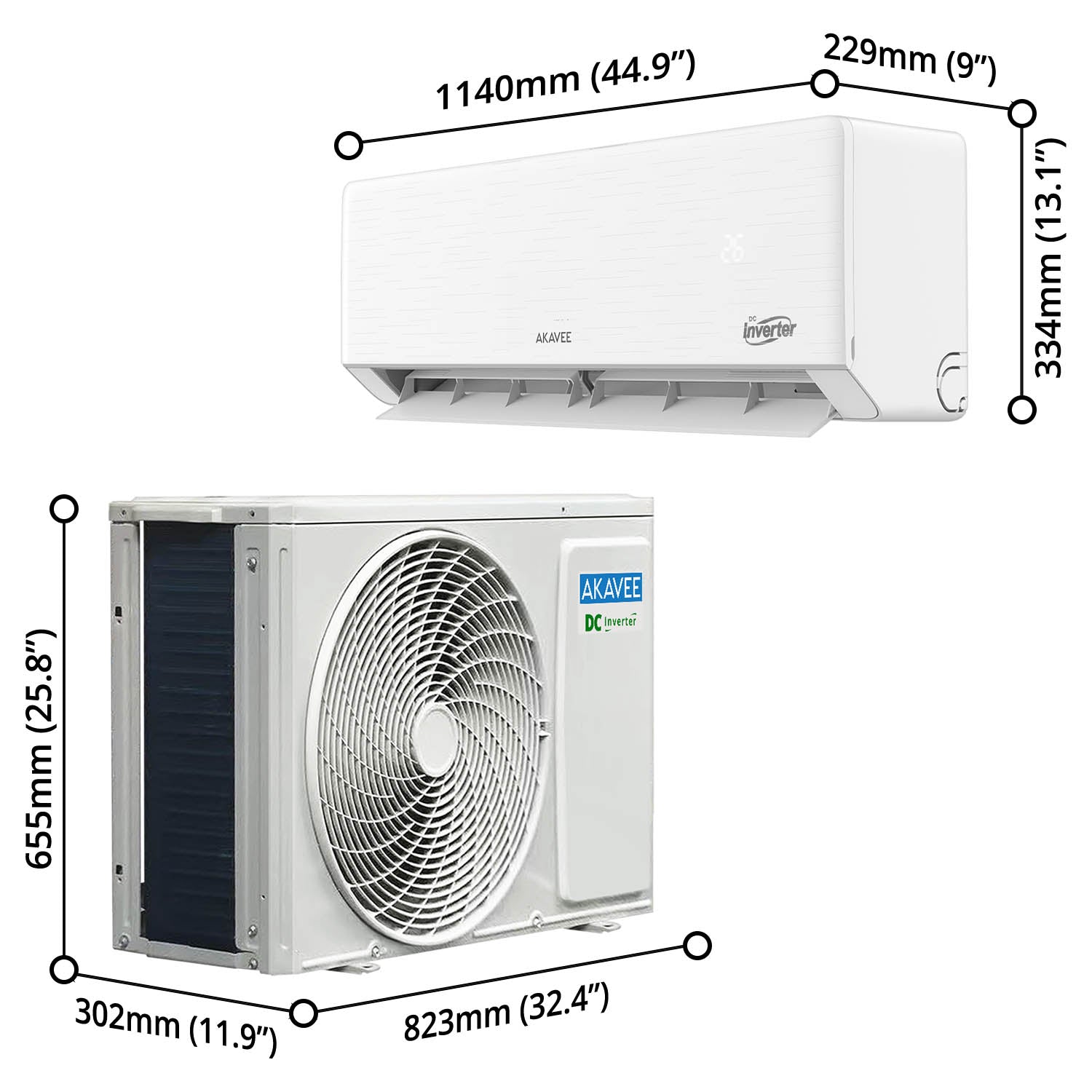

| Product Dimension: | 1140 x 229 x 334mm |
| Packing Dimension: | 1210 x 327 x 400mm |
| Net Weight: | 13kg |
| Gross Weight: | 17kg |

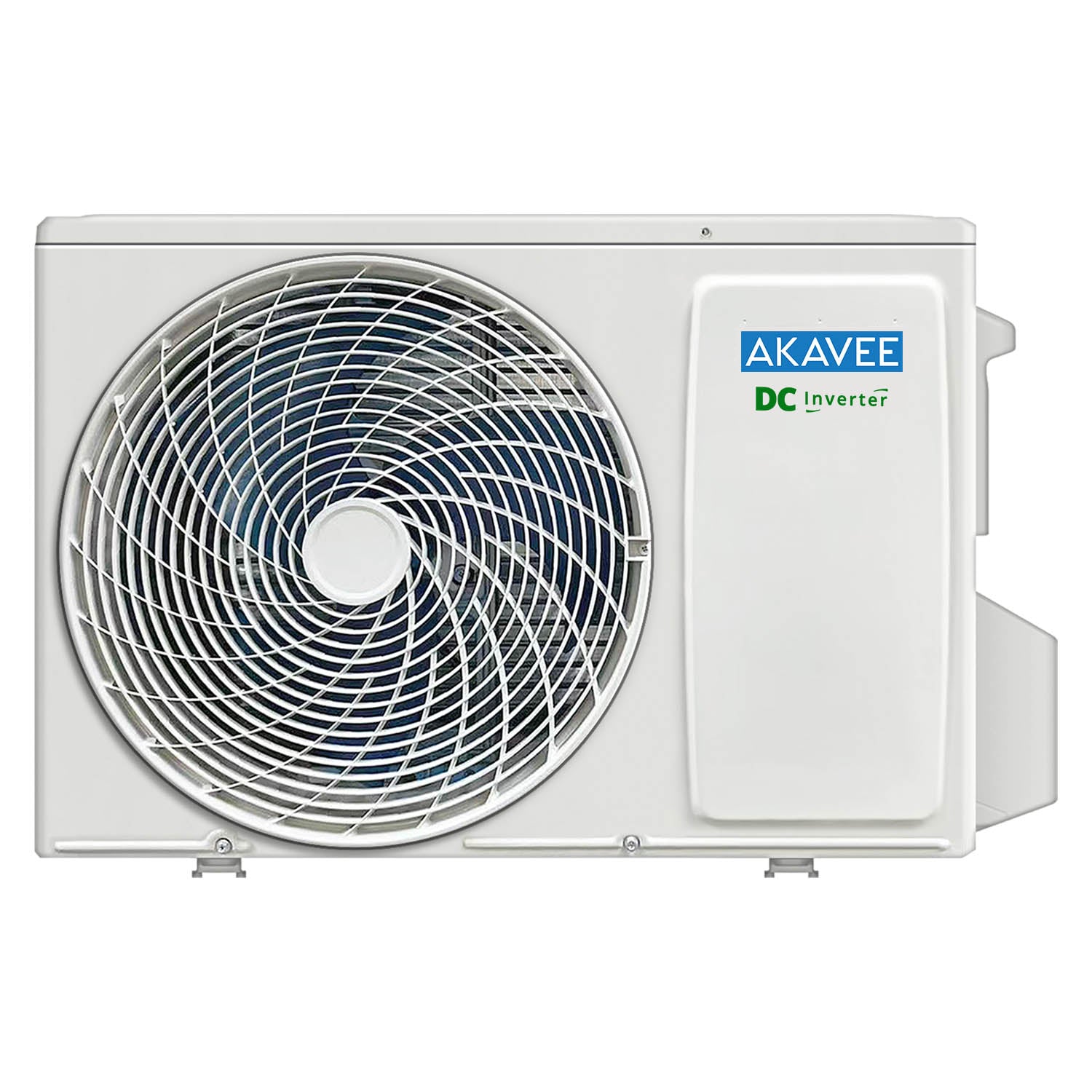

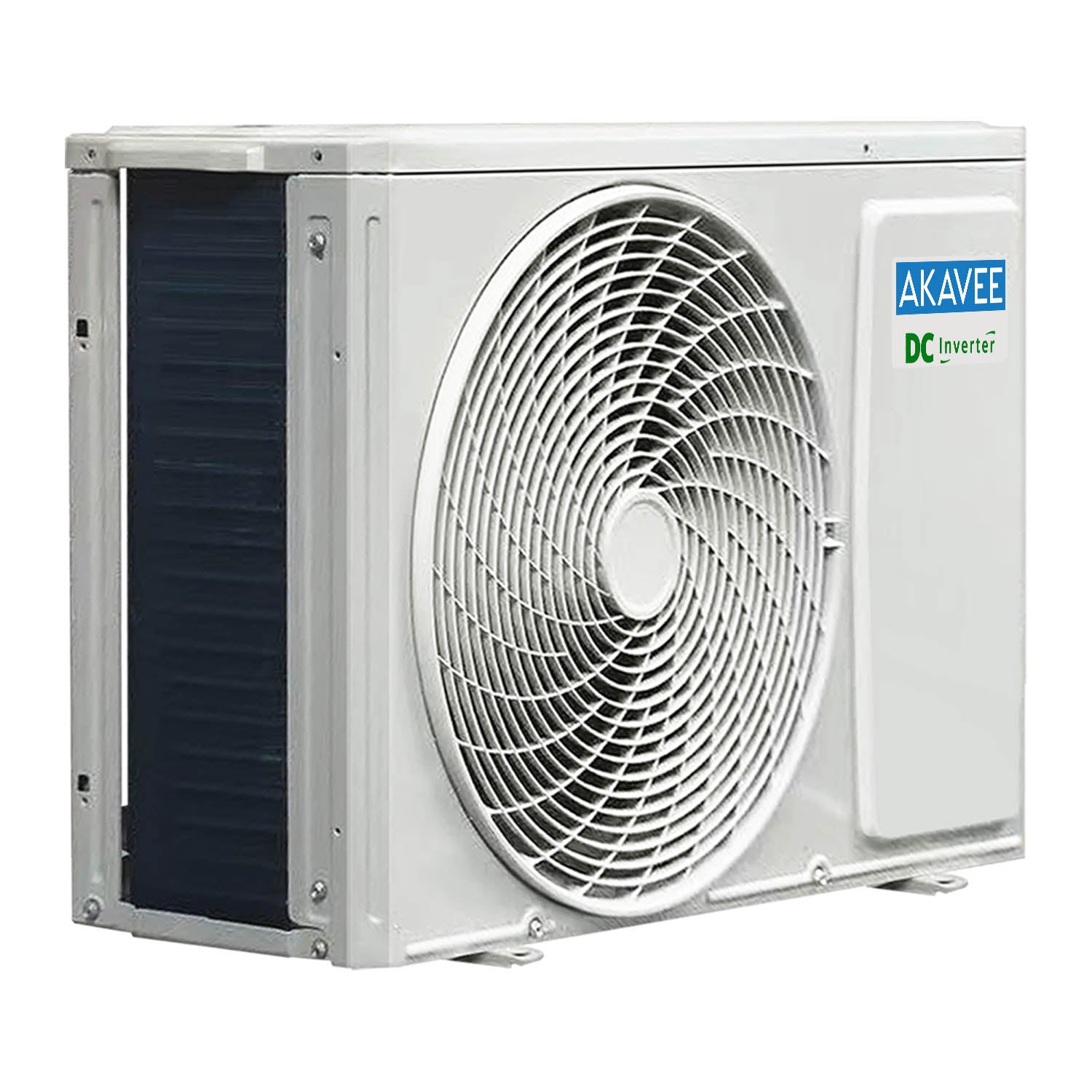

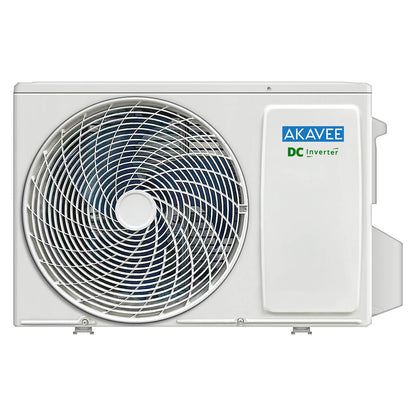

| Outdoor Unit: | |
| Noise Level: | 57db |
| Compressor Model: | GMCC |
| Compressor Parameter (type): | Rotation |
| Fan system (fan motor): | Model D-60-10M |
| Condenser (tube) Length: | 886mm |
| Condenser (tube) Diameter: | 7mm |
| Product Dimension: | 823 x 302 x 655mm |
| Packing Dimension: | 945 x 400 x 715mm |
| Net Weight: | 28.5kg |
| Gross Weight: | 33kg |

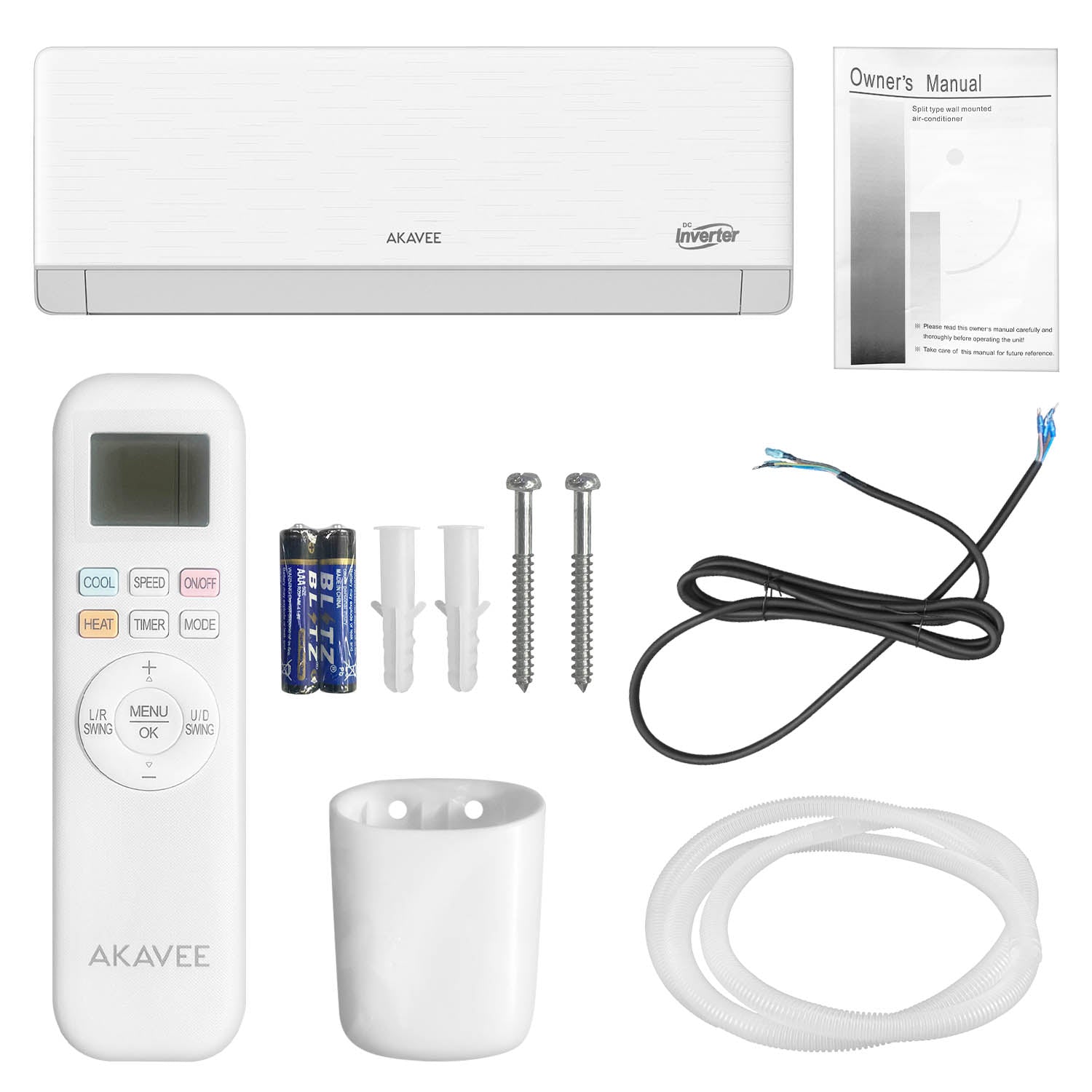

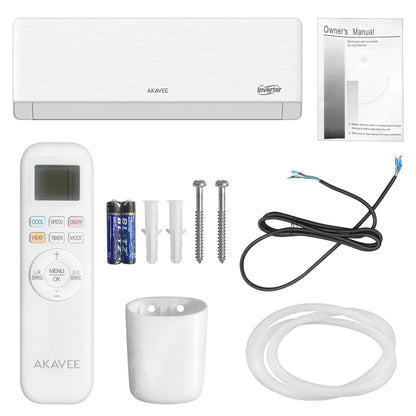

| Packing Contents: | |
| 24k BTU Indoor Unit - x1 |

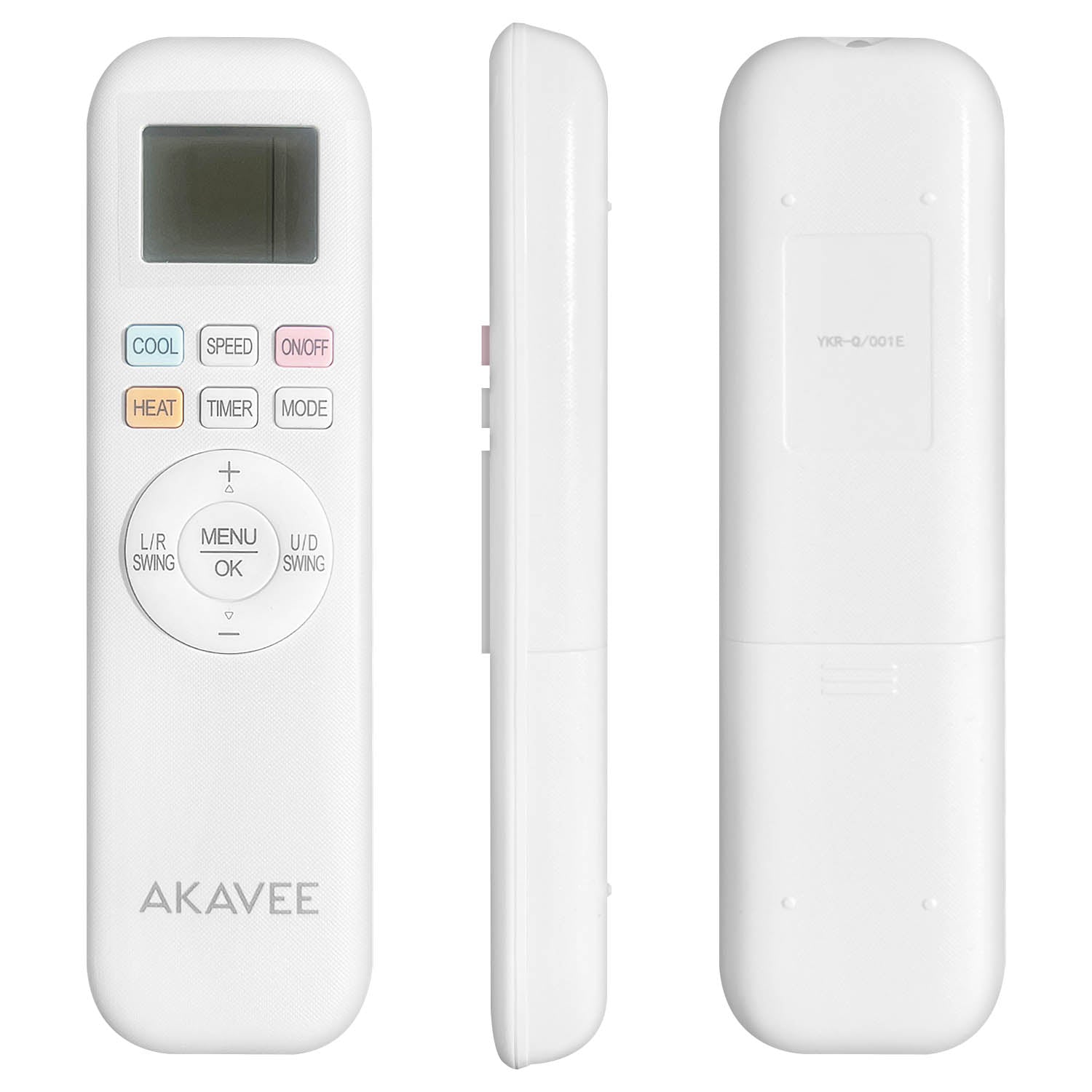

1x Remote Control |
| 24k BTU Outdoor Unit - x1 |

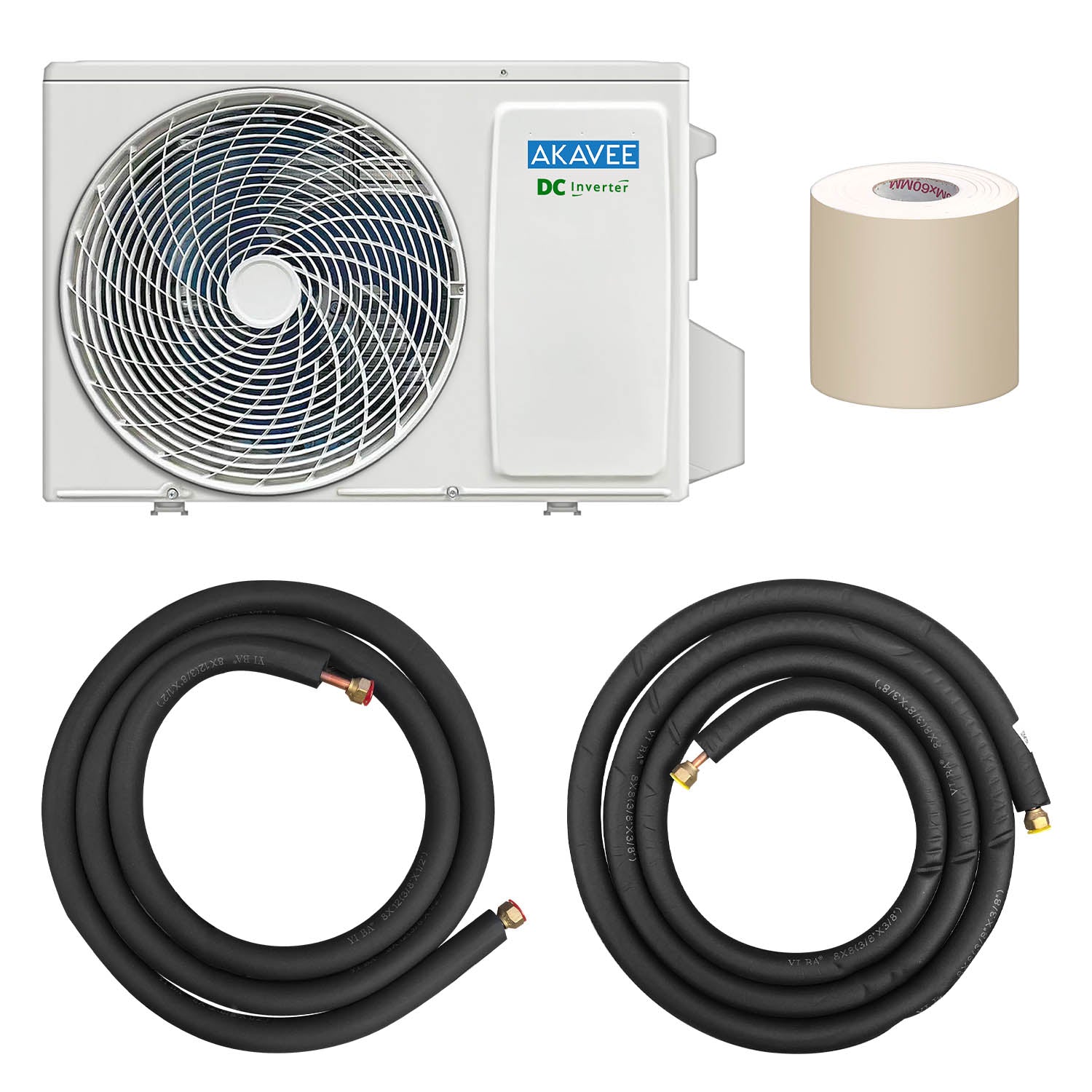

1x Insulated Copper Tube |
| Loading Capacity: | |
| Container Loading 40HC: | 159 |
