18000BTU Air Conditioner (Inverter)
Model: AS-18MER3DI
Size: 18000BTU
Color: White
Key Features
Key Features
Product Manual
Product Manual
| Akavee Air Conditioner (18000BTU) | |
| Brand: | Akavee |
| Model: | AS-18MER3DI |
| Type: | DC Inverter Split Type |
| Technical Specs: | |
| Rated Capacity (Cooling): | 5300 (1300 - 5300) W |
| Dehumidifying: | 1.6 Kg/h |
| Rated Power Consumption (Cooling): | 1700 (240 - 2200) W |
| Rated Running Current: | 7.7 (2.3 - 9) A |
| Max. Input Power: | 1900W |
| Max. Input Current: | 9A |
| CSPF (Cooling Seasonal Performance Factor): | 5.42 W/W |
| Air Flow Volume: | 850m³/h |
| Power Supply Source: | 220-240V / 1Ph / 50Hz |
| Refrigerant & Pressure: | |
| Refrigerant: | R32 |
| Refrigerant Charged: | 580g |
| Max. Discharge Pressure: | 4.3Mpa |
| Max. Suction Pressure: | 2.5Mpa |
| Connection: | |
| Connect Pipe (Length): | 3m |
| Liquid Valve: | DG4 |
| Gas Valve: | DG10 |
| Indoor Unit: | |
| Noise Level: | 47db |
| Evaporator (tube) Length: | 722mm |
| Evaporator (tube) Diameter: | 5mm |
| Fan system (fan motor): | Model D-310-30-10A |
| Outdoor Unit: | |
| Noise Level: | 53db |
| Compressor Model: | GMCC |
| Compressor Parameter (type): | Rotation |
| Fan system (fan motor): | Model D-35-10M |
| Condenser (tube) Length: | 688mm |
| Condenser (tube) Diameter: | 5mm |

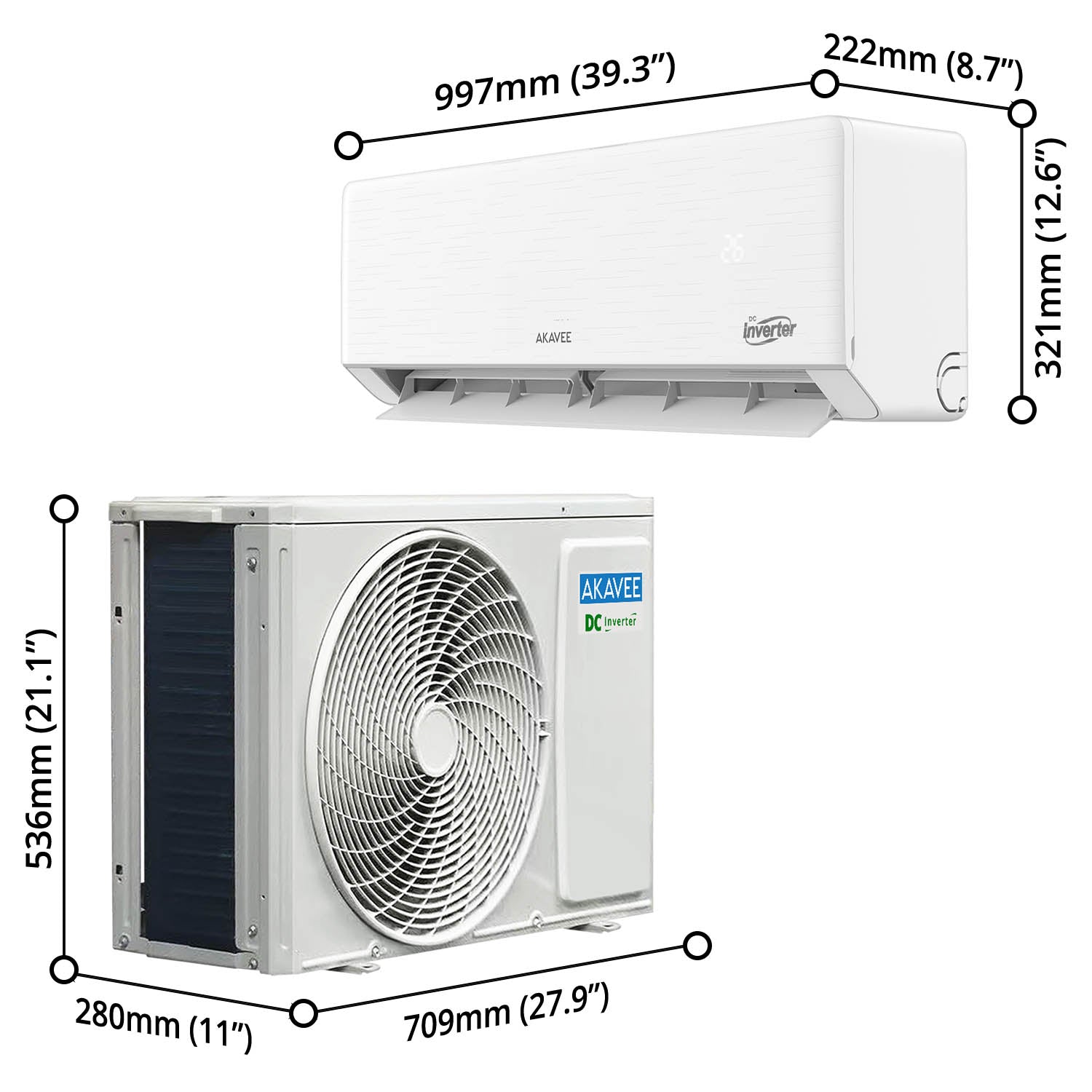

| Dimension & Weight: | |
| Indoor Unit (W x D x H): | |
| Product Dimension: | 997 x 222 x 321mm (39.3” x 8.7” x 12.6”) |
| Packing Dimension: | 1070 x 312 x 385mm (42.1” x 12.3” x 15.2”) |
| Net Weight: | 11kg |
| Gross Weight: | 14.5kg |
| Outdoor Unit (W x D x H): | |
| Product Dimension: | 709 x 280 x 536mm (27.9” x 11” x 21.1”) |
| Packing Dimension: | 825 x 345 x 595mm (32.5” x 13.6” x 23.4”) |
| Net Weight: | 21.5kg |
| Gross Weight: | 25kg |
| Packing Contents: | |
| 18k BTU Indoor Unit x1 | |
| Remote Control | x1 |
| Remote Holder (Wall-Mount) | x1 |
| Screws with Plugs | x2 |
| AA Battery | x2 |
| Electric Wire | x1 |
| Drainage Hose | x1 |
| User Manual | x1 |
| 18k BTU Outdoor Unit x1 | |
| Insulated Copper Tube | x1 |
| Insulated Copper Tube | x1 |
| Wrapping Roll | x1 |
| Loading Capacity: | |
| Container Loading 40HC: | 228 |
